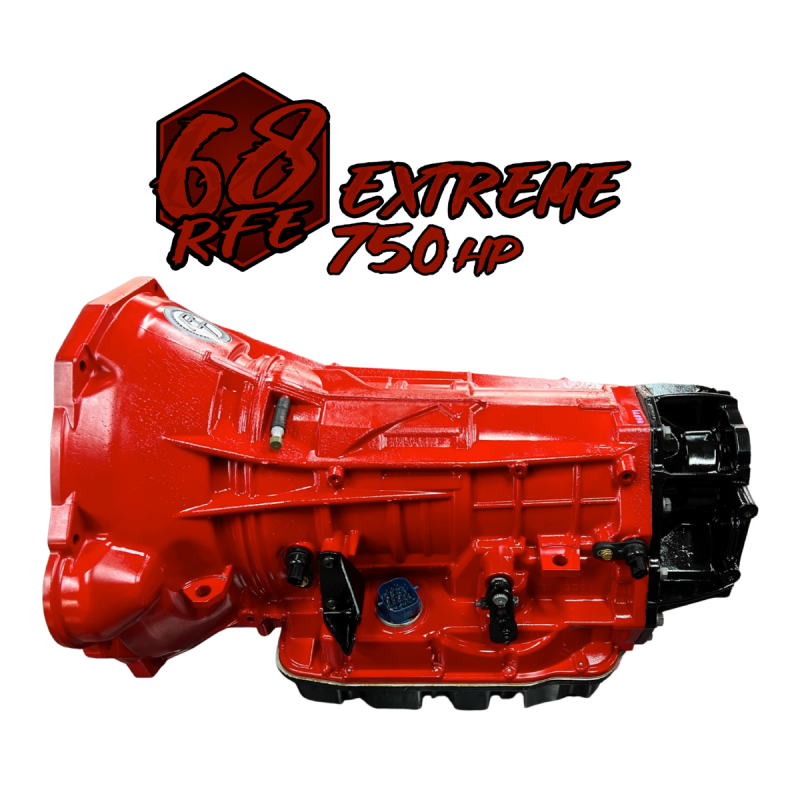

68RFE TRANSMISSION STAGE 2 2019+

Name: 68RFE TRANSMISSION STAGE 2 2019+
Brand: Randy's Transmissions
SKU: 68RFE20192RT
Price: 10195.0 USD
Availability: InStock

Store / Randy's Transmissions / Dodge - Ram

$10,195.00

Core Charge

Core Charge ( +$3,000.00 )

Year

Please choose

Make / Model

Please choose

VIN #

Enter your text

2WD or 4WD?

Please choose

Turbo Setup

Enter your text

Injectors/Fueling Upgrades?

Enter your text

Tire Size?

Enter your text

Gear Ratio?

Enter your text

Do you plan on any future upgrades?

Enter your text

Billet Flexplate?

Please choose

Would you like ATF? Requires 2 (two) cases for full fill

Please choose

Would You Like To Add a Thermal Bypass To Help Keep Trans Temps Lower?

Please choose

Choose Your Size for Free Tee and Hoodie

Please choose

Will you need a liftgate for delivery to your destination?

Please choose

In stock

Product Details

Brand: Randy's Transmissions

Stage 2 68RFE - 750HP Max - 2019 - 2023 Ram 6.7 Cummins - Great build for those who tow often.

In 2019, Chrysler decided to roll out with a revised version of the 68RFE; but they didn't shake things up too much. They made a couple of tweaks, but inside- it's pretty much the same as the 2007.5-2018 units. While they are similar, they are not the same - and not interchangeable. Needless to say, the 19+ 68's have the same problems as its older sibling. But thankfully, we have proven solutions to make the 19+ 68RFE's as robust as its older counterparts.

We have committed ourselves to building the highest-quality transmission for your pickup; tailored to what you do - by testing what we sell.

Our stage two is our most popular option and the best solution for those of you with modified pickups that put them to work. Whether you’re towing heavy equipment, hauling cargo, or towing the boat or camper to the lake - you’ll have peace of mind with the stage two, which includes our ‘Babymaker’ series billet valve body, increased clutch capacities throughout, billet internals, billet input shaft, and a triple disc torque converter- just to name a few things.

With its 750 Horsepower rating, it is ready to handle the power made by your truck and pull the weight you throw behind it.

Transmission Build Specs:

Babymaker 2000 billet channel plate valve body - built and tested in house
OE Mopar solenoid block
Billet accumulators and cover providing 3 additional bolts
Transgo SSV valves
PR valve, TCC limit valve, Pump bushing and new gears when needed
Randy’s billet triple disc torque converter - made in house
Billet input shaft
Sonnax input drum with custom overdrive stack out with custom clearances
Pumps are vacuum tested and repaired as required
2C power-packed with billet piston
4C power-pack, 4 clutches and custom pressure plate
4C billet snap ring retainer
14 L/R clutches
Bonded pistons
Heavy Duty Low/Reverse Sprag
Tig welded Low/Reverse planet
OE Mopar line pressure sensor
OE Mopar speed sensors
Bushings and Bearings are spec’d and replaced as needed
Billet steel spin on filter adapter
New filters
HD Cast aluminum deep pan

THIS IS THE INFORMATION YOUR TUNER WILL NEED TO PROPERLY TUNE FOR THE BABYMAKER:

LINE PRESSURE SET TO 225PSI ABOVE 30% THROTTLE ANGLE
100PSI RESTING PRESSURE
NO LOCKUP UNTIL 4TH GEAR
LOW/REVERSE SPRAG HOLDOUT
FOR 2019+, UNDERDRIVE PULSE TEST MUST BE TURNED OFF.

WARRANTY

68RFE 2 Year unlimited mile limited warranty will not cover broken cases or shafts of transmission including the 4th clutch hub. Any tires larger than a 35” tire must have proper gearing or warranty will be voided. Vehicle owner is responsible for having proper transmission tuning as transmission failure due to lack of tuning or improper tuning will not be a covered failure. Abuse, misuse, or burn down due to operator error will void warranty. Any warranty work must be performed at Randy’s Transmissions in Tooele UT. It is the vehicle owner’s responsibility to ship transmission or vehicle to Randy’s location for any and all repairs needing to be performed. Any repairs to transmission not authorized by Randy’s Transmissions will void warranty and will not be covered by Randy’s Transmissions.

WARRANTY IS NON-TRANSFERRABLE

Appropriate gear ratios

35" tire min gearing is 3:73 recommended 4:10
37" tire min gearing is 4:10 recommended 4:30
Larger than that should be running a 4:56 ratio
